 Ultrasound-Microwave(hybride) Reactor UMR-300B [Patent]
 Ultrasound-Microwave(hybrid) Reactor UMR Series can be used for enhancement of chemical reaction composition, resolution of material and development of new process by ultrasound and/or Microwave in laboratory.
 The reactor can be use for enhancement of chemical reaction by the cooperation action of ultrasound and Microwave.
 Can display the experiment parameter by LCD.
 Can choose control mode of constant temperature mode or constant output mode.
 Can save experiment parameter in memory.
 Can use the stirrer mixing sample.

Model UMR-300B
Output mode Ultrasound / Microwave / Ultrasound & Microwave
Ultrasonic frequency 25kHz
Ultrasonic output 0〜1000W
Ultrasonic vibration hone φ8mm
Microwave frequency 2450MHz
Microwave output 0〜800W
Reaction vessel 50mL, 100mL, 500mL
Temperature control range Max 300℃
Stirrer rotational speed 0〜2000rpm
External dimensions W530×D410×H535mm
Power supply AC100V 50/60Hz or AC220V±10% 50/60Hz
Option Ultrasonic vibration honeφ18mm, condenser

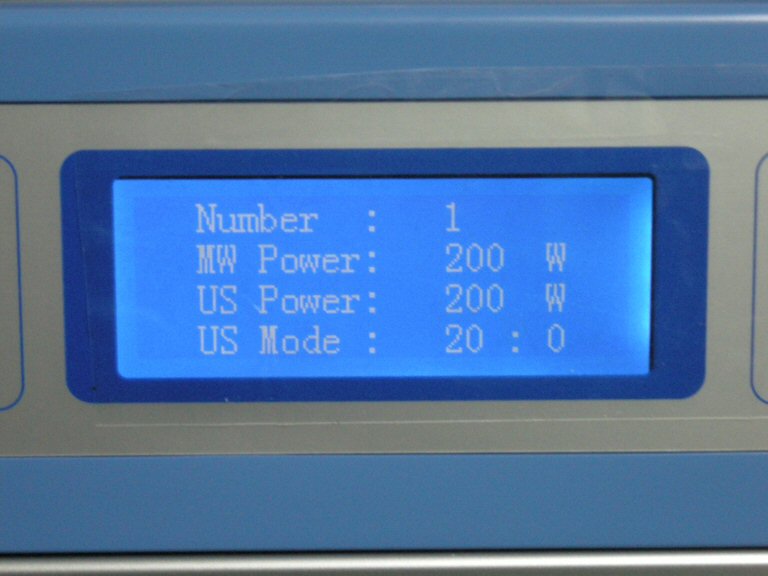

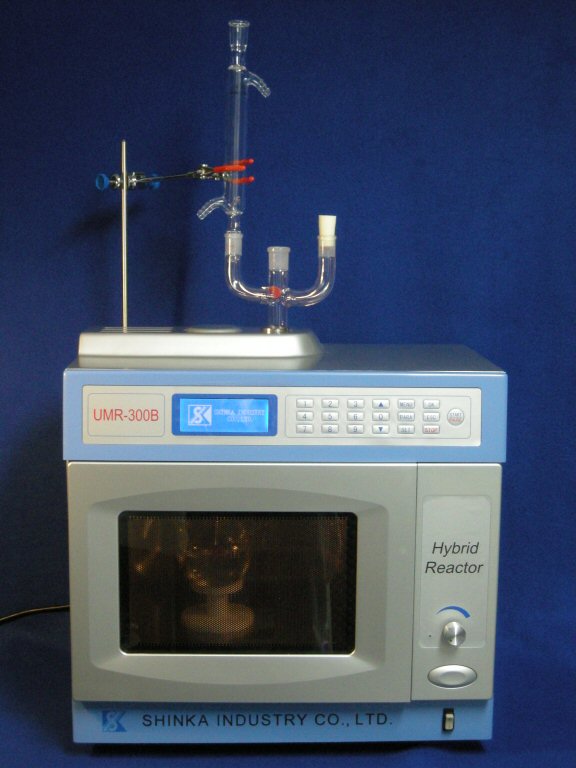

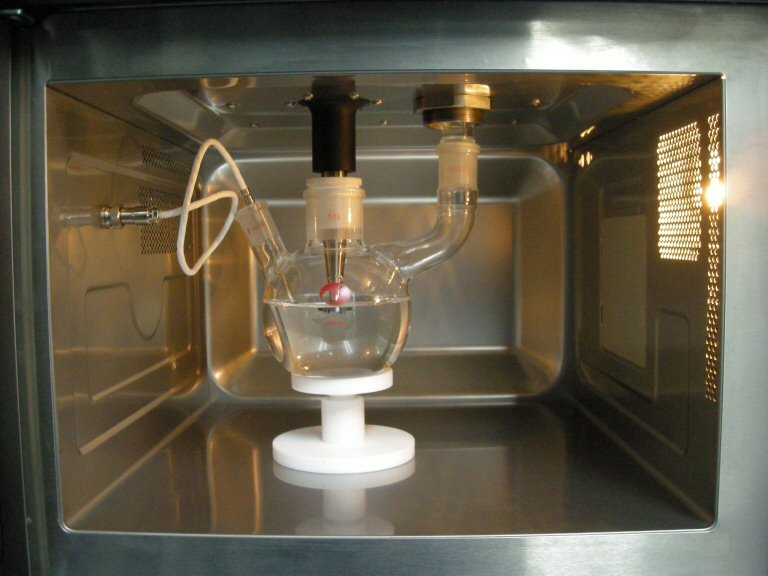

        External                       Internal                               LCD
