＞　Product　＞　Ultrasound-Photochemistry(hybrid) Reactor UPR Series	New possibility for chemical process・・・

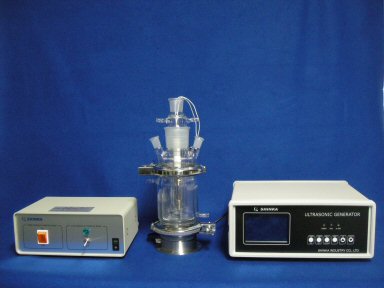

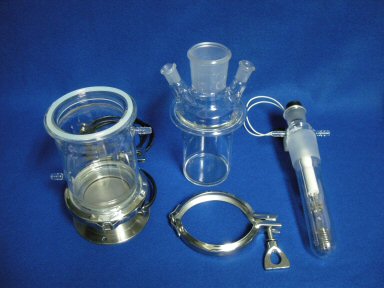

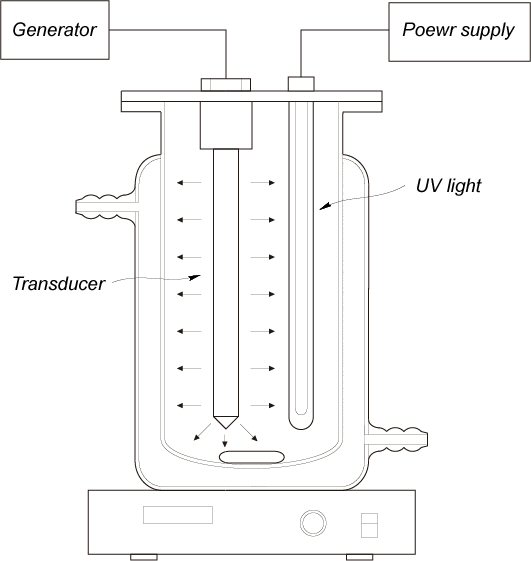

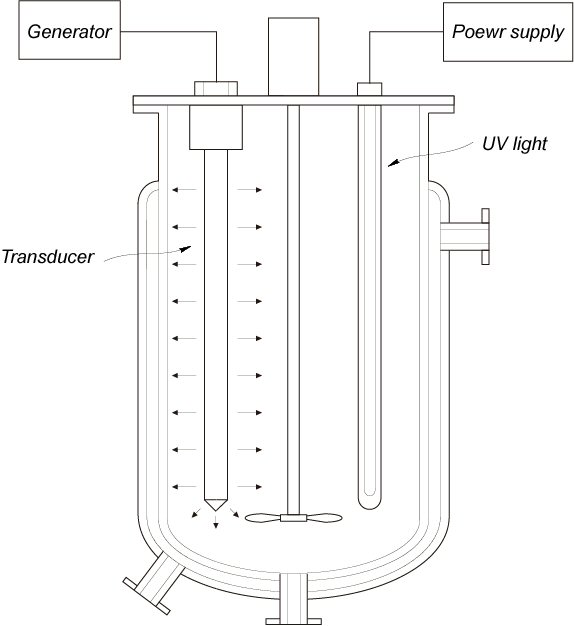

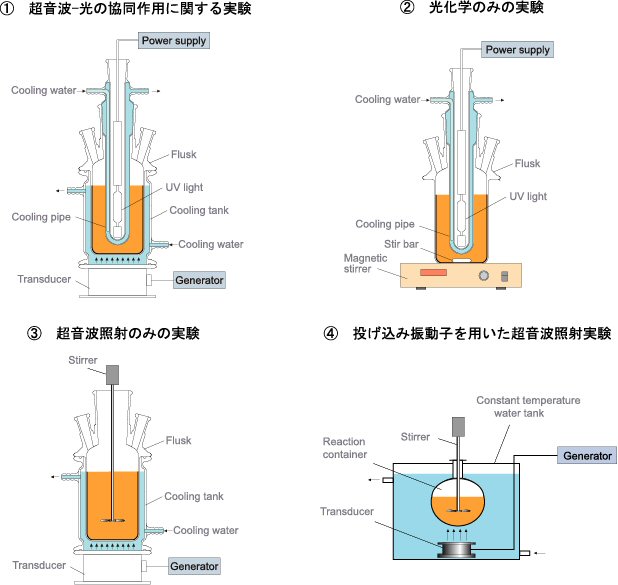

Ultrasoud-Photochemistry (hybrid) Reactor UPR-100 / UPR-200 / UPR-400 / UPR-800　[Patent] 　Characteristic： 　Ultrasound-Photochemistry(hybrid) Reactor UPR Series can be used for enhancement of chemical reaction composition, resolution of material and development of new process by ultrasound and/or light(UV) in laboratory. 　The reactor can be use for enhancement of chemical reaction by the cooperation action of the ultrasound and the light (UV). 　Can be use as ultrasonic reactor or UV reactor 　4 type transducer (frequency: 100kHz, 200kHz, 400kHz, 800kHz） 　Ultrasonic generator is digital type, the ultrasonic rediation time, output mode and output power can be set easily. 　Container is with jacket, the temperature can be controled easily. 　Thr transducer can be use as submersible transducer. 　Specification： Model UPR-100 UPR-200 UPR-400 UPR-800 Frequency 100kHz 200kHz 400kHz 800kHz Ultrasonic output 100W Output control 0〜100% (step 1%) Ultrasonic output mode Continuation／Puls Material of transducer Case：SUS304, φ115mm, H50mm、Vibration board: φ70mm Light source High pressure mercury lamp：100W & Low pressure mercury lamp：25W Capacity of tank When ultrasound only: Max 500mL、With light source:　Max 300mL Material of tank PYREX glass,　center 50/50、side 15/25 Operating temperature MAX　65℃ Generator dimensions W315×D275×H140mm Power supply AC100V〜AC115 　50/60Hz ※1　Capacity of tank can be varied on request.. ※2　AC220V the power supply on request 　　 　　　　　　　　　　　　Basic constitution　　　　　　　　　 　　　　　transducer & tank　　　 　　　　　　　　　　transducer & tank & UV lamp 　Other using examle 　　　　　　　　　 　Custom-made example
